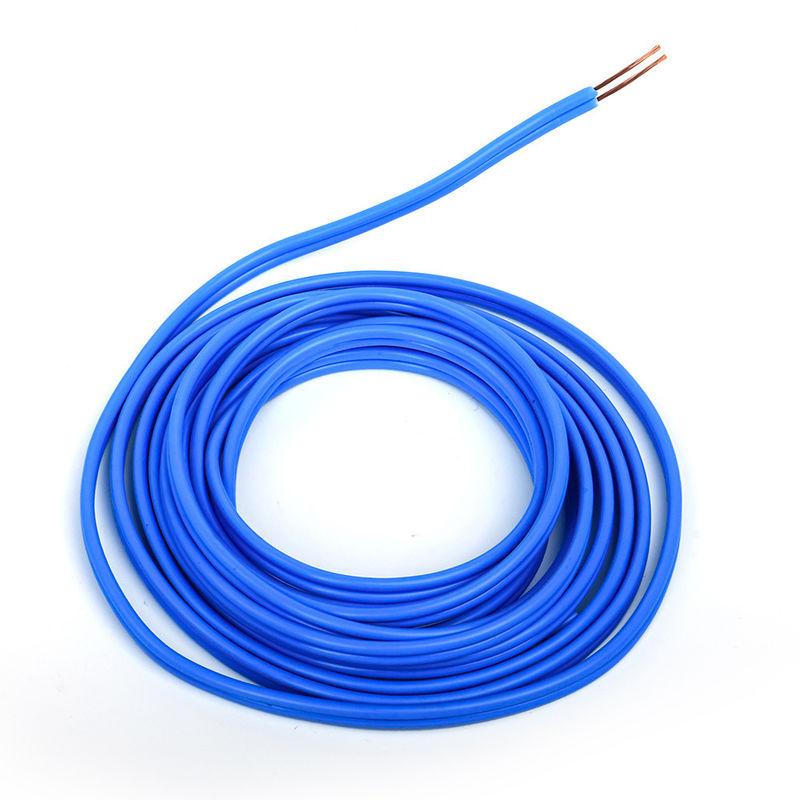

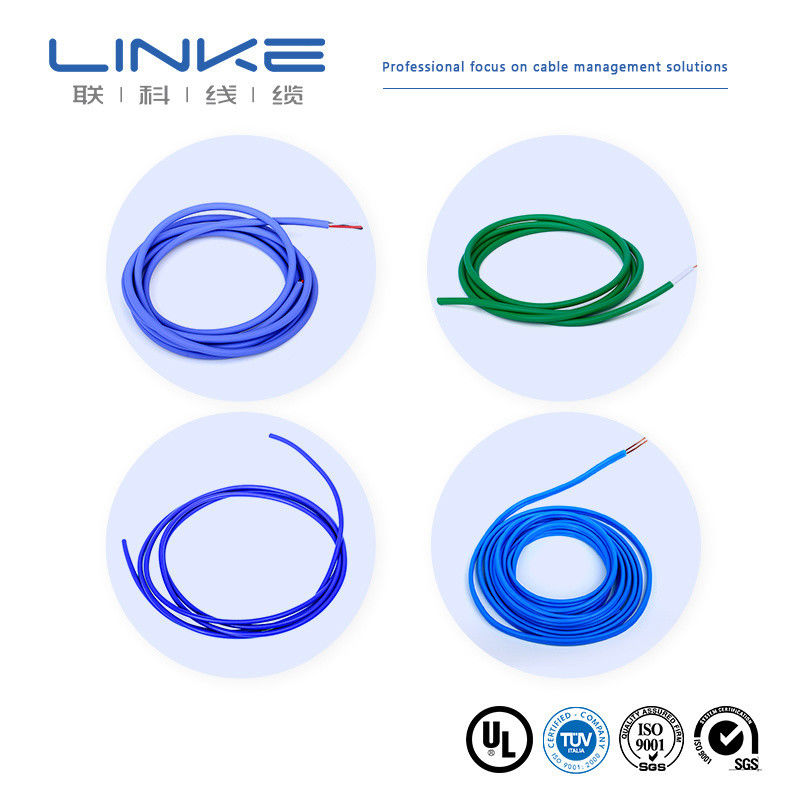

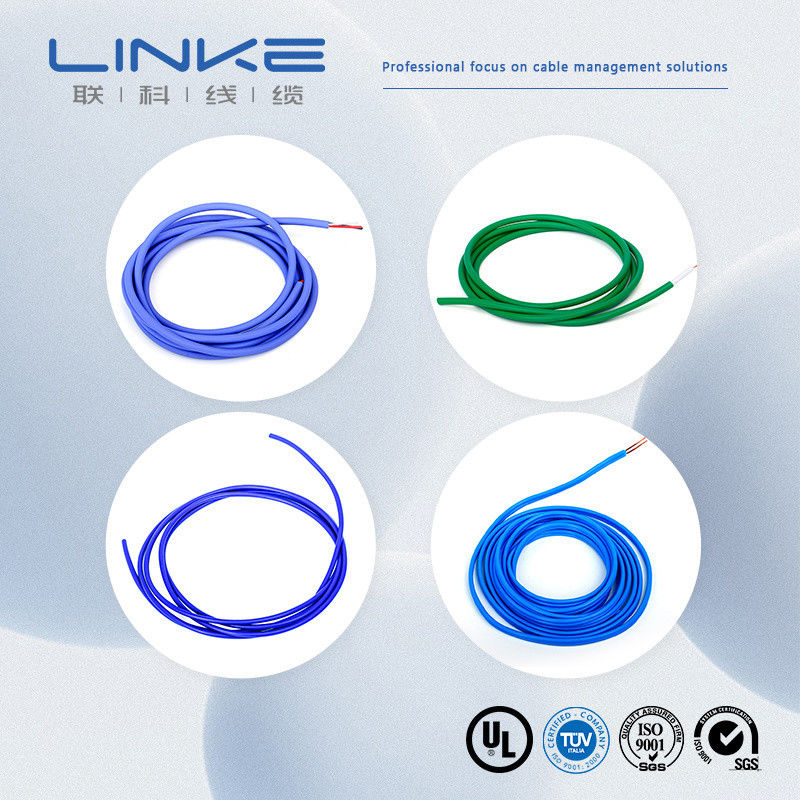

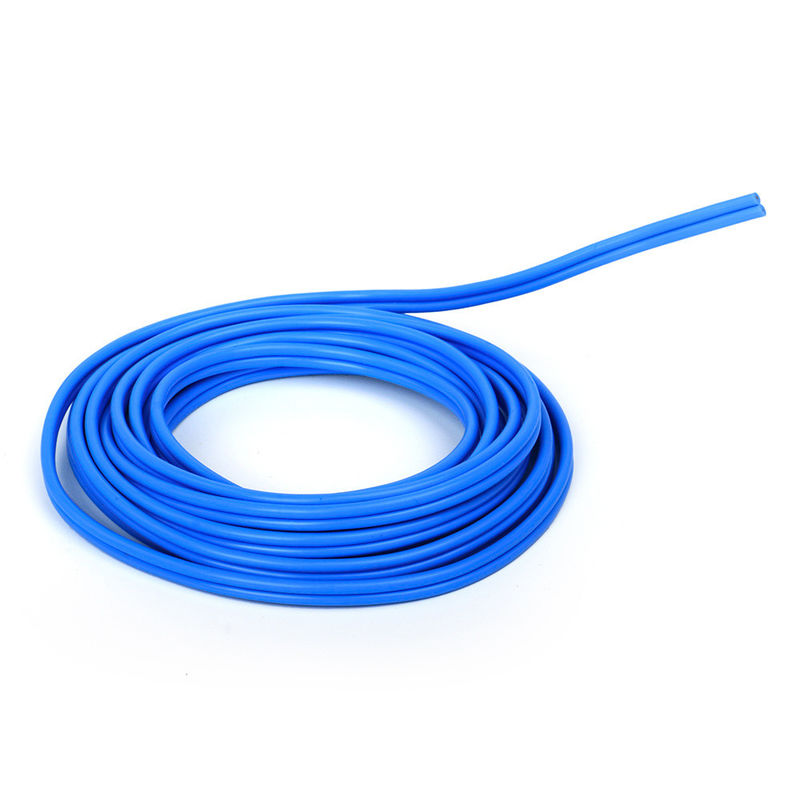

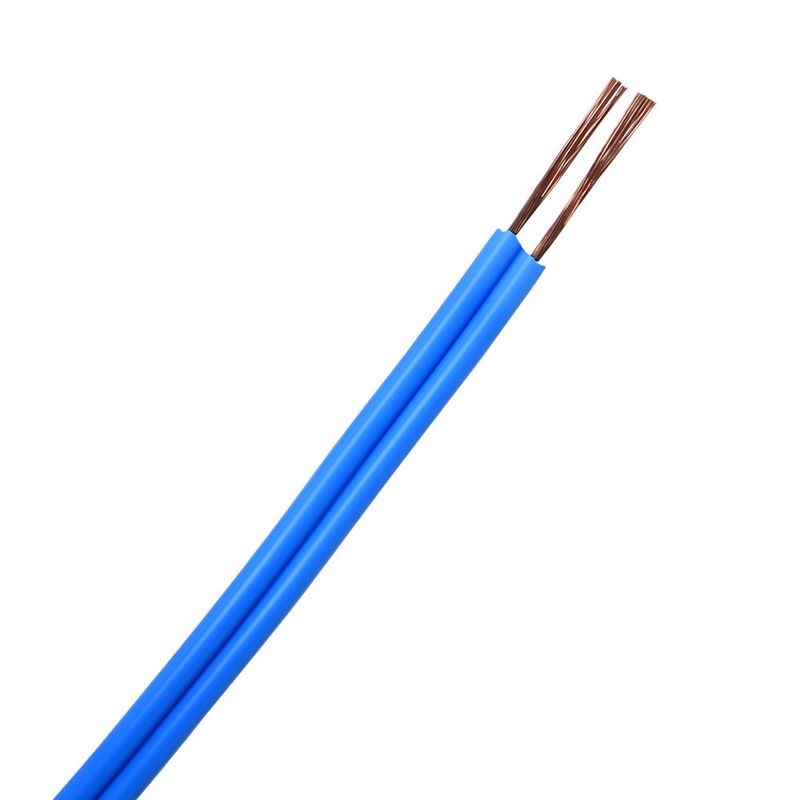

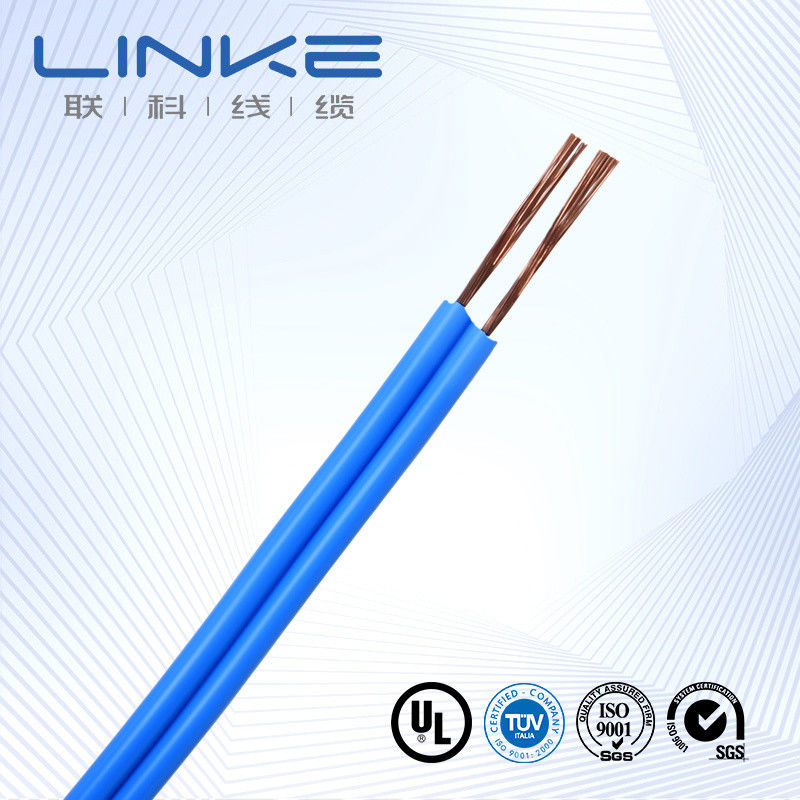

Silicone Jacket Hook-up Wire for Internal Wiring of Electronic and Electrical Equipment
Detailed Photos
| Conductor | Finished product |
| AWG | NO of Cord | Insulation Thick (mm) | Outside Thick(mm) | Packing (m/r) |
| 30 | 7/0.1 | 0.41 | 1.10 | 610 |
| 28 | 7/0.127 | 0.41 | 1.20 | 610 |
| 26 | 7/0.16 | 0.41 | 1.30 | 610 |
| 24 | 11/0.16 | 0.41 | 1.40 | 610 |
| 22 | 17/0.16 | 0.41 | 1.60 | 610 |
| 20 | 21/0.178 | 0.41 | 1.80 | 610 |
| 18 | 34/0.178 | 0.41 | 2.10 | 610 |
| 16 | 26/0.254 | 0.41 | 2.40 | 610 |
| 28 | 1/0.32 | 0.41 | 1.15 | 610 |
| 26 | 1/0.404 | 0.41 | 1.25 | 610 |
| 24 | 1/0.511 | 0.41 | 1.35 | 610 |
| 22 | 1/0.643 | 0.41 | 1.50 | 610 |
| 20 | 1/0.813 | 0.41 | 1.65 | 610 |
| 18 | 1/1.024 | 0.41 | 1.85 | 610 |
Conductor : Flexible Bare annealed copper wire
Insulation: Silicone
Choice of Black, Orange, Red or Yellow Blue jacket, single & double insulated.
SQ MM sizes (European style) :10 sq mm to 240 sq mm
AWG sizes (North American style) :6 Awg to 50awg
Wide temperature range: -60°C to 200°C
2,Low viscosity appearance
Company Profile: Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China. In the past over 10 years, Linke Cable has been focusing on R&D, production and marketing of wire and cable. Linke provide various cables&custom cable solutions for all over the world. We are specialized in EV charging cable, medical cable, silicone cable, spring cable, braided cable, towlobe cable, UL wire, automotive cable, etc.
At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach to develop better cables for customers and improve the quality of one's life.
Our certification: We past UL1007,UL1185,UL1672,UL10070,UL10483,UL1015,UL1569,UL10012,UL10269(Single conductor,thermoplastic insulation)
UL2095,UL2129,UL2468,UL2586,UL2725,UL20233,UL20280,UL20963,UL2103,UL2463,UL2517,UL2587,UL2835,UL20276,UL20549,UL21198,2104,UL2464,UL2576,UL2661,UL2919,UL20279,UL20886,UL21664
ISO9001 and ISO13485,TS16949
CNR- Appliance Wiring Material,
Extruded PVC Insulated Single,rated 105ºC,1000V,ClassI,GroupA,B,or AB, FT1 and/or FT2.
Extruded PVC Non-integral Jacketed Cable, rated 105"C, 1000V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2.
Extruded TPU Non-integral Jacketed Cable, rated 80"C, 300V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2
