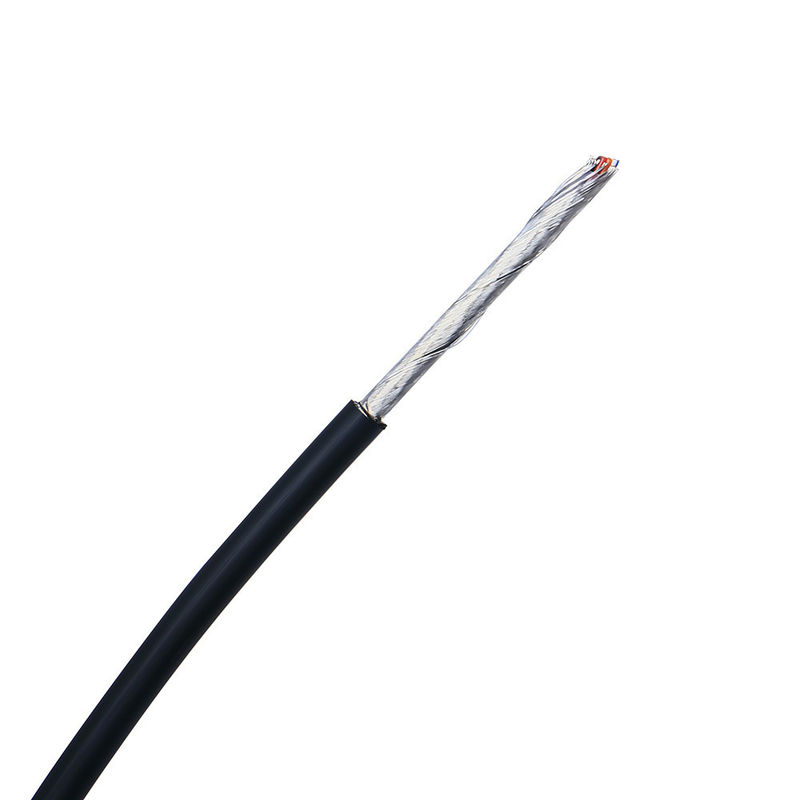

Unshielded Twisted Pair Shielded ADP Cat UTP/FTP/SFTP LAN Cable with PVC Insulation

Πιστοποίηση:

ISO9001, CE, CCC, RoHS, VDE, Is013458

Επικοινωνήστε μαζί μας

Ζητήστε μια προσφορά

Unshielded Twisted Pair Shielded ADP Cat UTP/FTP/SFTP LAN Cable with PVC Insulation

Λεπτομέρειες προιόντος

Σχήμα αριθ.:

Καλώδιο ADP cat5e cat6a cat7 cat8 lan

Υλικό κάλυψης:

PE PVC LSZH HDPE

Υλικό μόνωσης:

PVC

Σχήμα υλικού:

Στρογγυλό σύρμα

Σειρά της εφαρμογής:

καλώδιο LAN

Συνδετήρας:

RJ45 8P8C Επίχρυσο

Ασπίδα:

Αλ φύλλο+πλέξιμο/Διαστρεβλωμένο ζευγάρι χωρίς προστασία

Χρώμα:

Προσαρμοσμένο

Ονομασία:

καλώδιο LAN

Πακέτο μεταφοράς:

Ρολ

Προδιαγραφές:

Καλώδιο ADP cat5e cat6a cat7 cat8 lan 4P UTP/FT

Εμπορικό σήμα:

ΕΜΤ

Καταγωγή:

Κίνα

Κώδικας Hs:

8544492900

Δυνατότητα προσφοράς:

500000 μέτρα/ημέρα

Μέγεθος συσκευασίας:

40.00cm * 40.00cm * 40.00cm

Ακαθάριστο βάρος πακέτου:

28.000kg

Τύπος:

Απομονωμένα

Τύπος αγωγού:

Αγκυροβόλητοι

Υλικό αγωγού:

Γυμνό χαλκό, CCA, CCS, Hcca, Ccag

Δείγματα:

10 δολάρια το κομμάτι 1 κομμάτι.

Προσαρμογή:

Διαθέσιμος Προσαρμοσμένο αίτημα

Κόστος αποστολής:

σχετικά με το κόστος αποστολής και τον εκτιμώμενο χρόνο παράδοσης.

Αρχική πληρωμή Πλήρης πληρωμή

Χρηματοδότηση:

ΗΠΑ

Επιστροφή και επιστροφή χρημάτων:

Μπορείτε να ζητήσετε επιστροφή μέχρι 30 ημέρες μετά την παραλαβή των προϊόντων.

Όροι πληρωμής & ναυτιλίας

Συγγενικά προϊόντα

Insulated High Voltage Electric Vehicle Shielded EV Charging Cable Wire 3000V for Needs

Πάρτε την καλύτερη τιμή

High Voltage 1000V Tinned Copper Electric Coil Wire Cable for Flexible Applications

Πάρτε την καλύτερη τιμή

Initial Payment Copper Underwater Coaxial Cable Data and Video Transmission Cable

Πάρτε την καλύτερη τιμή

US Currency Flexible Cable for Engineering Plant Installations and Vehicle Manufacturing

Πάρτε την καλύτερη τιμή

Επικοινωνήστε μαζί μας

86-0769-81776230

86-18665106395

sales@linkecable.com

Επικοινωνήστε τώρα

Περιγραφή προϊόντων

ADP cat5e cat6 cat6a cat7 cat8 lan cable 4P UTP/FTP/SFTP lan cable

item	lan cable
Place of Origin	China
	Guangdong
Brand Name	SMT,OEM
Number of Conductors	8
Product name	cat5e cat6 cat6a cat7 cat8 Lan Cable
Shield	Al Foil+braiding/Unshielded Twisted Pair
Conductor	Bare Copper,CCA,CCS,HCCA,CCAG
Number of Conductor	8
Jacket Material	PE PVC LSZH HDPE
Connector	RJ45 8P8C Gold-plated
Keyword	Network Lan Cables
Color	Customized
Payment	T/T

Product Description

Typical Cable Specifications For CAT5E UTP/FTP

Frequency (MHZ)	Return loss(dB)	Attenuation (dB/100m)	NEXT (dB)	ACR (dB)	PSNEXT (dB)	ELEFXT (dB/100m)	PSELEXT (dB/100m)	Delay (ns/100m)
0.772	19.4	1.8	67	65	64	66	63	575.0
1.0	20.0	2.0	65.3	63.0	62.3	63.8	60.8	570.0
4.0	21.0	4.1	56.3	52.0	53.3	51.7	48.7	552.0
8.0	24.5	5.8	51.8	46.0	48.8	45.7	42.7	546.7
10.0	25.0	6.5	50.3	44.0	47.3	43.8	40.8	546.4
16.0	25.0	8.2	47.3	39.0	44.3	39.7	36.7	543.0
20.0	25.0	9.3	45.8	37.0	42.8	37.7	34.7	542.0
25.0	24.3	10.4	44.3	34.0	41.3	35.8	32.8	541.2
31.25	23.6	11.7	42.9	31.0	39.9	33.9	30.9	540.4
62.5	21.5	17	38.4	21.0	35.4	27.8	24.8	438.6
100.0	20.1	22	36.3	13.0	32.3	23.8	20.8	537.6

Typical Cable Specifications For CAT6 UTP/FTP

Frequency (MHZ)	Return loss(dB)	Attenuation (dB/100m)	NEXT (dB)	ACR (dB)	PSNEXT (dB)	ELEFXT (dB/100m)	PSELEXT (dB/100m)	Delay (ns/100m)
0.772	19.4	1.8	76.0	74.0	74.0	70.0	67.0	575.0
1.0	20.0	2.0	74.3	72.0	72.3	67.8	64.8	570.0
4.0	23.0	3.8	65.5	61.0	63.3	55.8	52.8	552.0
8.0	24.5	5.3	60.8	55.0	58.8	49.7	46.7	546.7
10.0	25.0	6.0	59.3	53.0	57.3	47.8	44.8	545.4
16.0	25.0	7.6	56.2	49.0	54.2	43.7	40.7	543.0
20.0	25.0	8.5	54.8	46.0	52.8	41.8	38.8	542.0
25.0	24.3	9.5	53.3	44.0	51.3	39.8	36.8	541.2
31.25	23.6	10.7	51.9	41.0	49.9	37.9	34.9	540.4
62.5	21.5	15.4	47.4	32.0	45.4	31.9	28.9	538.6
100.0	20.1	19.8	44.3	24.5	42.3	27.8	24.8	537.6
200.0	18.0	29.0	39.8	10.8	37.8	21.8	18.8	536.5
250.0	17.3	32.8	38.3	5.5	36.3	19.8	16.8	536.3

Typical Cable Specifications For CAT5E SFTP

Frequency(MHZ)	Attenuation(dB/100meter at 20ºC), Max	Next(dB),Min	Power Sum(dB),Min
1MHz	-----	65*	62*
4.0	4.1*	56*	53*
8.0	5.8*	51*	48*
10.0	6.5*	50*	47*
16.0	8.2*	47*	44*
20.0	9.3*	45*	42*
25.0	10.4*	44*	41*
31.25	11.7*	42*	39*
62.5	17.0*	38*	35*
100.0	22.0*	35*	32*
125.0	25.0*	34*	31*

Typical Cable Specifications For CAT6 SFTP

Frequency(MHZ)	Attenuation(dB/100meter at20ºC),Max	Next(dB),Min	Power Sum(dB),Min
0.772	-----	67*	64*
1.0	-----	65*	62*
4.0	6.4*	56*	53*
8.0	8.9*	51*	48*
10.0	9.9*	50*	47*
16.0	12.3*	47*	44*
20.0	13.8*	45*	42*
25.0	16.0*	44*	41*
31.25	17.1*	42*	39*
62.5	25.6*	38*	35*
100.0	100MHz	33*	32*
125.0	37.4*	34*	31*

Typical Cable Specifications For CAT7 SFTP

Frequency(MHZ)	Attenuation(dB/100meter at20ºC),Max	Next(dB),Min	Power Sum(dB),Min
1	2.0*	80.0*	77.0*
4	3.7*	80.0*	77.0*
10	5.9*	80.0*	77.0*
16	7.4*	80.0*	77.0*
20	8.3*	80.0*	77.0*
31.25	10.4*	80.0*	77.0*
62.5	14.9*	75.5*	72.5*
100	19.0*	72.4*	69.4*
155	24.0*	69.5*	66.5*
200	27.5*	67.9*	64.9*
300	34.2*	65.2*	62.2*
600	50.10*	60.7*	57.7*

Company Profile:

we are a leading cable supplier in China, who specialized in measuring & control devices cable, medical equipment cable, automotive & rail transit cable, wind & solar energy cable, alarm & security cable, conveyor and elevators cable, conveyors & cranes cable, communications & coaxial cable's R&D and production.

In the past over 10 years, we've been focusing on technical researching, production and marketing of wire and cable. And provide the best cables and various cable custom solutions for customers from world wide. You always can get a suitable cable or cable custom service for your product or application from Linke Cable.
ADP Cat UTP/FTP/SFTP LAN Cable

Our certification:

We past UL1569,2095,2103,2104,2129,2463,2576,2586,2587,2661,2919,10012,10070,10269,10483,20886 and 21664.
ISO9001 and ISO13485

CNR- Appliance Wiring Material,Extruded PVC Insulated Single,rated 105ºC,1000V,ClassI,GroupA,B,or AB, FT1 and/or FT2.
ADP Cat UTP/FTP/SFTP LAN Cable

FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.

3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.

4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company
